Ferule od ugljičnog i nehrđajućeg čelika visokog tlaka, otporne na koroziju

Ferrule is used on different layer of hoses, such as 1 layer, 2 layer, 4 layer.....The Ferrule used for different types of hoses is different, and the most common Ferrule is 00110,03310.

00110

03310

Why Choose Our NJ Company Ferrules?

Rigorous Testing: Each batch undergoes pressure cycling, salt spray, and thermal shock tests to ensure reliability.

Global Standards: Compatible with SAE, DIN, JIS, and ISO systems for seamless integration.

Custom Solutions: Tailor materials, finishes, and O-ring compounds (Viton®, EPDM, etc.) to meet unique needs.

Fast Delivery: Global shipping with OEM/ODM support for bulk orders.

Engineered for extreme performance, our Carbon and Stainless Steel Ferrules redefine reliability in fluid and gas systems. Whether tackling high-pressure hydraulic challenges or corrosive chemical environments, these fittings deliver unmatched sealing, durability, and cost efficiency. Trusted by industries worldwide, they are the smart choice for engineers prioritizing safety and longevity. Explore our catalog today to find the perfect ferrule solution for your application!

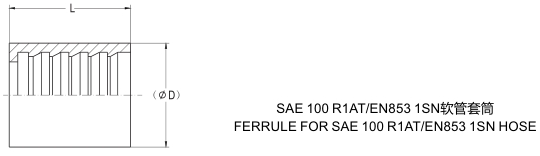

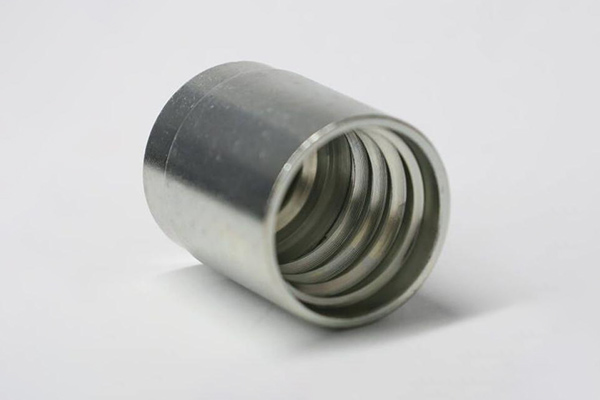

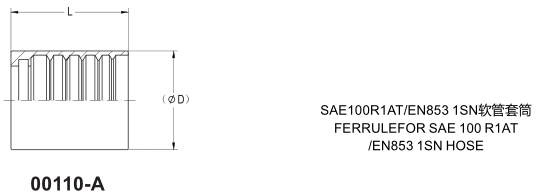

1. 00110 Ferrule Fitting FERRULE FOR SAE 100 R1AT/ EN853 1SN HOSE

Broj dijela: 00110

Description: FERRULE R1AT/1SN

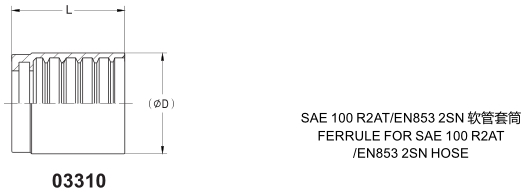

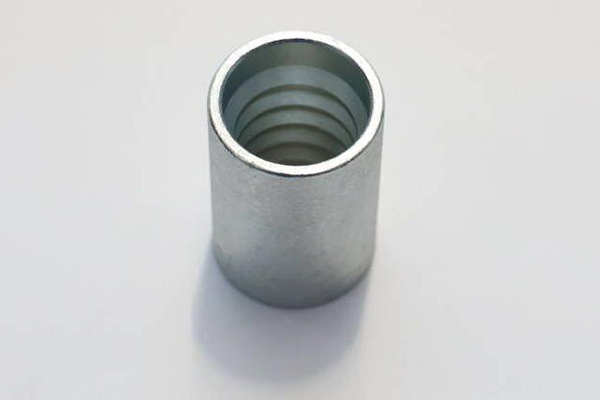

2. 03310 Hose Ferrule FERRULE FOR SAE 100R2AT/ EN853 2SN HOSE

Broj dijela: 03310

Description: FERRULE R1AT/ 1SN/ R2AT/ 2SN

Ferrules Advantages

1. Superior Pressure Resistance

Carbon Steel: Handles up to 10,000 PSI with high tensile strength, perfect for heavy-duty hydraulic systems.

Stainless Steel: Maintains integrity under 6,000 PSI dynamic pressure, ideal for aerospace and marine environments.

2. Iznimna otpornost na koroziju

Stainless Steel (304/316): Chromium-nickel alloy resists rust, saltwater, and acidic/alkaline fluids.

Carbon Steel: Zinc-plated or epoxy-coated surfaces prevent oxidation in humid conditions.

3. Tolerancija na visoke temperature

Operates in -65°F to +1,200°F (-54°C to +649°C), suitable for steam lines, exhaust systems, and high-heat industrial processes.

4. Leak-Proof Sealing Performance

Precision-machined conical surfaces create a double-seal (metal-to-metal + radial compression) to eliminate leaks.

5. Lightweight Yet Durable Design

Stainless steel ferrules offer 50% weight reduction vs. traditional fittings without compromising strength.

6. Dugotrajna trajnost

Resists wear, vibration fatigue, and stress cracking for 10+ years of service life.

7. Široka kompatibilnost

Works seamlessly with copper, nylon, stainless steel, and thermoplastic tubing (SAE J514, DIN 2353, ISO 8434 standards).

8. Brza i jednostavna instalacija

Pre-assembled ferrules enable tool-free installation, reducing assembly time by 30%.

9. Učinkovitost troškova

Carbon Steel: Budget-friendly for high-volume industrial projects.

Stainless Steel: Low maintenance costs and extended lifespan ensure ROI.

10. Ekološki prihvatljivo i sigurno

100% recyclable materials; RoHS-compliant and food-grade (316L) options available.

Značajke proizvoda

1. Mogućnosti materijala

Carbon Steel: Zinc-plated or black oxide finish for enhanced corrosion protection.

Stainless Steel: Grade 304 (general use) or 316 (marine/chemical resistance).

2. Dual-Seal Technology

Combines metal-to-metal contact with radial compression for zero-leak guarantees.

3. Precizno inženjerstvo

CNC-machined threads and surfaces ensure perfect alignment with tubing and fittings.

4. Površinska obrada

Electropolished (stainless steel) or coated (carbon steel) to minimize friction and seal damage.

5. Raspon veličina

Available from 1/8" to 2" diameters with NPT, JIC, BSPP, and metric threading options.

6. certifikati

ISO 9001, RoHS, and REACH compliant; traceable material certifications provided.

1. Hydraulic & Pneumatic Systems

Securely connects tubing in high-pressure hydraulic pumps, valves, and actuators for construction and agricultural machinery.

2. Oil & Gas Equipment

Resists harsh chemicals and extreme pressures in drilling rigs, pipelines, and refinery systems.

3. Automobilska i svemirska industrija

Lightweight stainless steel ferrules reduce weight in fuel lines, brake systems, and aircraft hydraulic networks.

4. Food & Pharmaceutical Processing

316L stainless steel variants meet sanitary standards for sterile fluid transfer.

5. Industrijska proizvodnja

Compatible with CNC machines, robotics, and automation systems requiring vibration-resistant connections.
