Visokotlačni hidraulički prirubnički spojevi od ugljičnog i nehrđajućeg čelika
Our Carbon Steel & Stainless Steel Hydraulic Flange fittings are precision-engineered, high-pressure connectors designed for demanding hydraulic systems. Compliant with SAE J518 and ISO 6162 standards, these flanges provide leak-proof, vibration-resistant connections for valve blocks, pumps, and pipelines. Available in carbon steel (42CrMo) for extreme strength or stainless steel (SS316) for corrosion resistance, they support pressures up to 700 bar (10,000 PSI) while saving 30-50% space versus traditional flanges. The item incldue striaght, 45 degree and 90 degree . The code have 61 and 62. The shape include bending and forged.
Opis
Ključne značajke i pogodnosti
1. Ultra-High Pressure Resistance
350–700 bar (5,000–10,000 PSI) working pressure, with 4x burst pressure safety margin.
Mogućnosti materijala:
Carbon Steel (42CrMo): Ideal for heavy-duty industrial applications.
Stainless Steel (SS316): Perfect for marine, chemical, or food-grade environments.
2. Space-Saving Embedded Design
50% more compact than standard flanges, fitting seamlessly into valve blocks or tight spaces.
Reduces system bulk in construction machinery, wind turbines, and mobile hydraulics.
3. Zero-Leak Sealing Technology
Dual Sealing System: Combines FKM/NBR O-rings with metal-to-metal cone seals for failsafe performance.
Meets SAE J518 Code 61/62 and ISO 6162 standards for guaranteed compatibility.
4. Quick-Connect & Modular Maintenance
Self-sealing valve options allow testing/sampling without system shutdown.
Replaceable flange cores eliminate full disassembly, cutting downtime by 70%.
5. Anti-Vibration & Longevity
Locking threads and phosphated/nickel-plated surfaces prevent loosening under vibration.
Withstands 100,000+ pressure cycles (ISO 10771 certified).
1JFL9
1804-FGWhy Choose Our Hydraulic Flanges?
✔ Proven Reliability: Rigorously tested for ISO and SAE compliance.
✔ Global Standardization: Interchangeable with major OEM systems.
✔ Cost-Effective: Modular design reduces lifecycle costs.
✔ Customizable: Optional sensor ports, RFID tags, or special coatings.
Zaključak
For high-pressure hydraulic systems demanding compact size, zero leaks, and easy maintenance, our Carbon & Stainless Steel Hydraulic Flanges deliver unmatched performance. Whether in construction, energy, or industrial automation, these adapters ensure safe, durable, and efficient fluid power connections.
Request a quote today for SAE/ISO-compliant hydraulic solutions!
Tehnički Podaci
Note - All fittings in the JICM x SAE Flange series are one piece construction

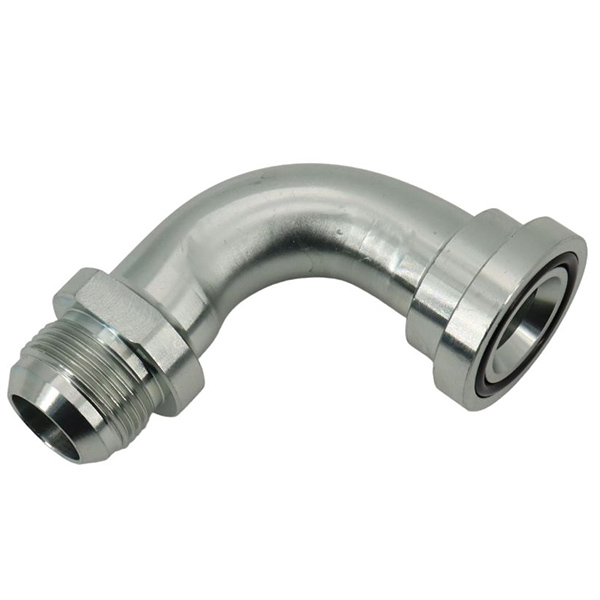

JIC Male x SAE Flange CD 61 90 Degree Bend Adaptor (figure 1JFL9)
| Nit | Ivica | Dio Ne | L | M | D | W | H | ||
| Crtica | JIC | Crtica | CD 61 | mm | mm | mm | mm | mm | |
| -12 | 3 / 4-16 | -08 | 1/2 | 1JFL9-1208 | 46 | 57 | 30.2 | 6.7 | 22 |
| -12 | 3 / 4-16 | -12 | 3/4 | 1JFL9-1212 | 46 | 60 | 38.1 | 6.7 | 22 |
| -14 | 7 / 8-14 | -08 | 1/2 | 1JFL9-1408 | 51 | 65 | 30.2 | 6.7 | 24 |
| -17 | 1.1 / 16-12 | -12 | 3/4 | 1JFL9-1712 | 54 | 73 | 38.1 | 6.7 | 30 |
| -17 | 1.1 / 16-12 | -16 | 1 | 1JFL9-1716 | 54 | 73 | 44.5 | 8.0 | 30 |
| -17 | 1.1 / 16-12 | -16 | 1 | 1JFL9-1720 | 54 | 73 | 50.8 | 8.0 | 30 |
| -21 | 1.5 / 16-12 | -12 | 3/4 | 1JFL9-2112 | 66 | 86 | 38.1 | 6.7 | 35 |
| -21 | 1.5 / 16-12 | -16 | 1 | 1JFL9-2116 | 66 | 86 | 44.5 | 8.0 | 35 |
| -21 | 1.5 / 16-12 | -20 | 1.1/4 | 1JFL9-2120 | 66 | 86 | 50.8 | 8.0 | 35 |
| -21 | 1.5 / 16-12 | -24 | 1.1/2 | 1JFL9-2124 | 68 | 86 | 60.3 | 8.0 | 35 |
| -26 | 1.5 / 8-12 | -20 | 1.1/4 | 1JFL9-2620 | 77 | 101 | 50.8 | 8.0 | 42 |
| -26 | 1.5 / 8-12 | -24 | 1.1/2 | 1JFL9-2624 | 82 | 103 | 60.3 | 8.0 | 42 |
| -26 | 1.5 / 8-12 | -32 | 2 | 1JFL9-2632 | 89 | 101 | 71.4 | 9.5 | 42 |
| -30 | 1.7 / 8-12 | -24 | 1.1/2 | 1JFL9-3024 | 93 | 116 | 60.3 | 8.0 | 50 |
| -30 | 1.7 / 8-12 | -32 | 2 | 1JFL9-3032 | 93 | 116 | 71.4 | 9.5 | 50 |
| -40 | 2.1 / 2-12 | -32 | 2 | 1JFL9-4032 | 114 | 168 | 71.4 | 9.5 | 66 |
Note - All fittings in the JICM x SAE Flange series are one piece construction
JIC Male x SAE CD 62 Flange 90 Elbow (figure 1804-FG)
| Nit | Ivica | Dio Ne | L1 | L2 | D | W | S1 | ||
| Crtica | JIC | Crtica | CD 62 | mm | mm | mm | mm | mm | |
| -17 | 1.1 / 16-12 | -12 | 3/4 | 1JFLH9C-1712 | 48 | 48 | 41.3 | 8.8 | 32 |
| -17 | 1.1 / 16-12 | -16 | 1 | 1JFLH9C-1716 | 60 | 50 | 47.6 | 9.5 | 41 |
| -21 | 1.5 / 16-12 | -16 | 1 | 1JFLH9C-2116 | 60 | 50 | 47.6 | 9.5 | 41 |
primjena
Construction Equipment: Excavators, loaders, and cranes requiring compact, high-pressure connections.
Wind Energy: Hydraulic pitch systems in turbines.
Industrial Machinery: Injection molding, presses, and automation systems.
Marine & Offshore: Corrosion-resistant SS316 flanges for ship hydraulics.
Mining & Agriculture: Durable carbon steel flanges for harsh environments.
